高压隔离低压电源

高压隔离低压电源

Advanced Energy的浮动热甲板低压电源系列为需要低压电源和高压隔离控制的系统提供了集成解决方案。这些子系统将高度隔离的DC到DC多输出低压电源与先进的隔离数字和模拟I/O拓扑相结合,为浮动热甲板电路提供电源和控制。

首页 > 产品中心 > 高压电源 > PCB安装型高压电源 > 高压隔离低压电源

高压隔离低压电源

返回
page1
page1
page1
page1

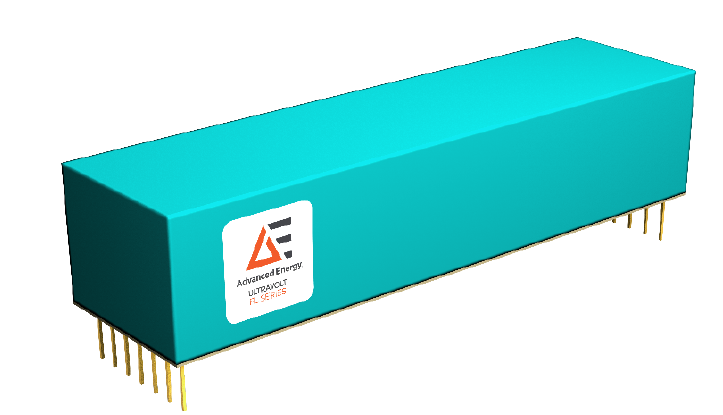

Floating Hot Deck LVPS With Isolated Digital And Analog I/O

FL 系列

The UltraVolt® FL series of floating-hot-deck, low-voltage power supplies offers an integrated solution for systems requiring LV power & controls with high-voltage isolation. Combining a highly isolated, DC-DC, multi-output low-voltage power supply (LVPS) with an advanced isolated digital & analog I/O topology, the FL sub-system provides both power and controls to floatinghot-deck circuitry. This solution, when combined with one or more UV HVPS or other circuitry, can provide high-performance solutions.

特点

  • Isolated up to 15 kV
  • DC leakage current of <10 nA
  • AC leakage capacitance of <40 pF
  • 3 regulated floating LV power outputs
  • Isolated digital and analog I/O to and from floating hot deck
  • UL/cUL Recognized Component; CE Mark (LVD & RoHS)

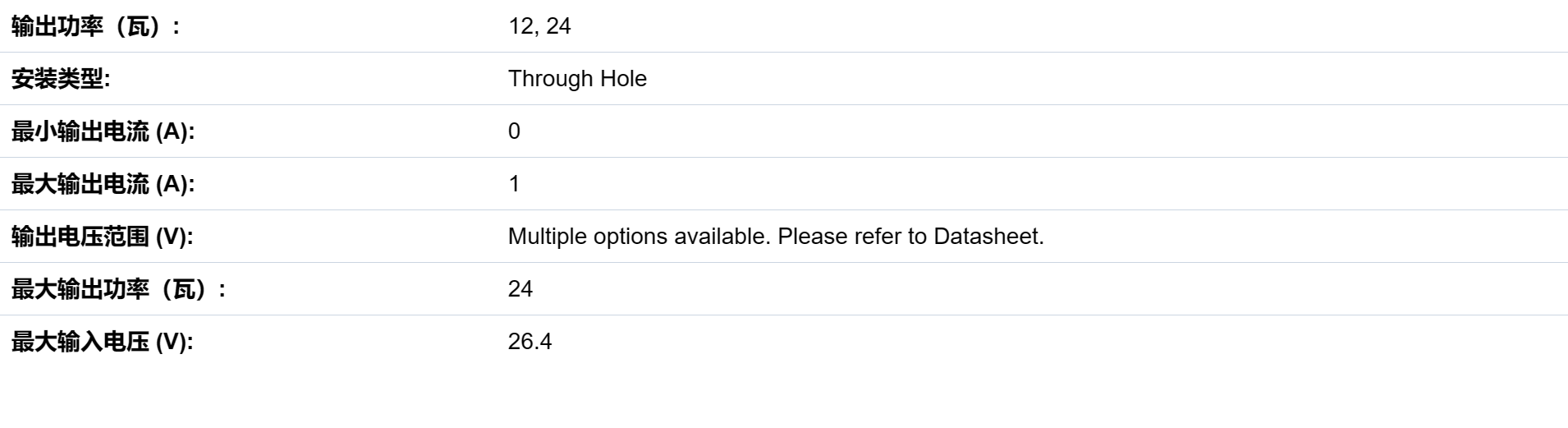

规格

技术文档
